Description

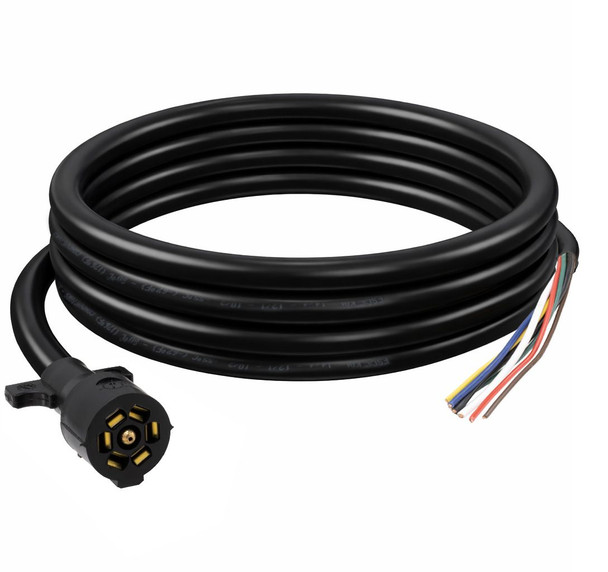

Keep your trailer wiring secure and dependable with this 6-foot trailer wiring harness featuring a durable RV-style plug connection. Built with heavy-duty wire gauges for reliable power transfer, this harness is ideal for enclosed trailers, utility trailers, cargo trailers, and equipment haulers requiring electric brakes and auxiliary power.
Designed for easy installation and long-lasting performance, the harness includes color-coded wiring for straightforward connections.
Features
- 6′ harness length

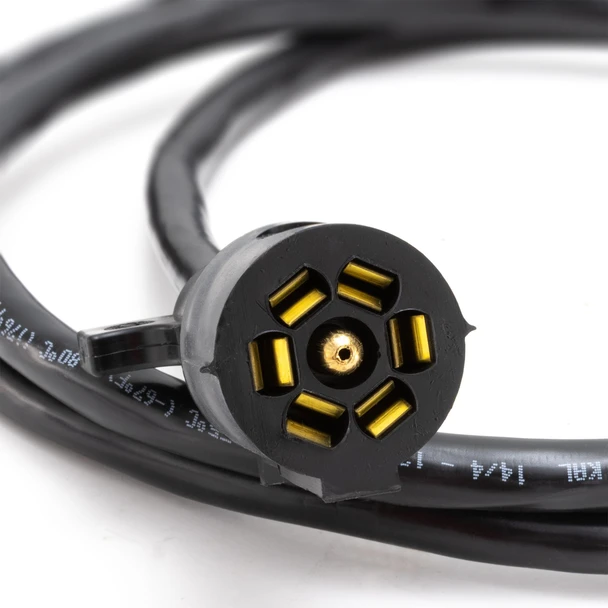

- RV-style trailer plug
- Heavy-duty insulated wiring
- Color-coded wires for simplified installation
- Compatible with electric brake systems
- Supports auxiliary and reverse light functions
Wire Gauges
- Red, Brown, Green, and Yellow: 14 gauge
- Blue: 12 gauge
- White and Black: 10 gauge
Wiring Configuration
| Wire Color | Function |
|---|---|
| Yellow | Auxiliary and reverse lights |
| Green | Tail lights |
| Brown | Right turn and brake lights |
| Blue | Electric brakes |
| Black | 12V battery charge |
| Red | Left turn and brake lights |
| White | Ground |
