Description
This 18,000 BTU ductless mini split AC & heat pump system is a high-output climate control upgrade designed to improve comfort in larger enclosed spaces. With strong airflow, efficient heating and cooling performance, and a wide temperature range, it’s a practical option for maintaining consistent interior temperatures in demanding environments. This part can be purchased individually or requested as an upgrade on a new trailer build.
Part Features
- Cooling Capacity: 17,000 BTU
- Heating Capacity: 17,700 BTU
- Coverage Area: up to 1,250 sq. ft.
- Cooling Power: 1400W
- Heating Power: 1440W
- Air Flow Rate: 618 CFM
- SEER2: 21
- HSPF2: 9
- Dehumidifying Capacity: 67 pints/day
- Temperature Setting Range: 60℉–90℉
- Refrigeration: R32
- Indoor Noise Level: 23 dB
- Outdoor Noise Level: 54 dB
- Voltage: 208–230V~60Hz/1PH
- Indoor Unit Color: White
- Outdoor Unit Color: White
- Material: Metal, Aluminum, Plastic

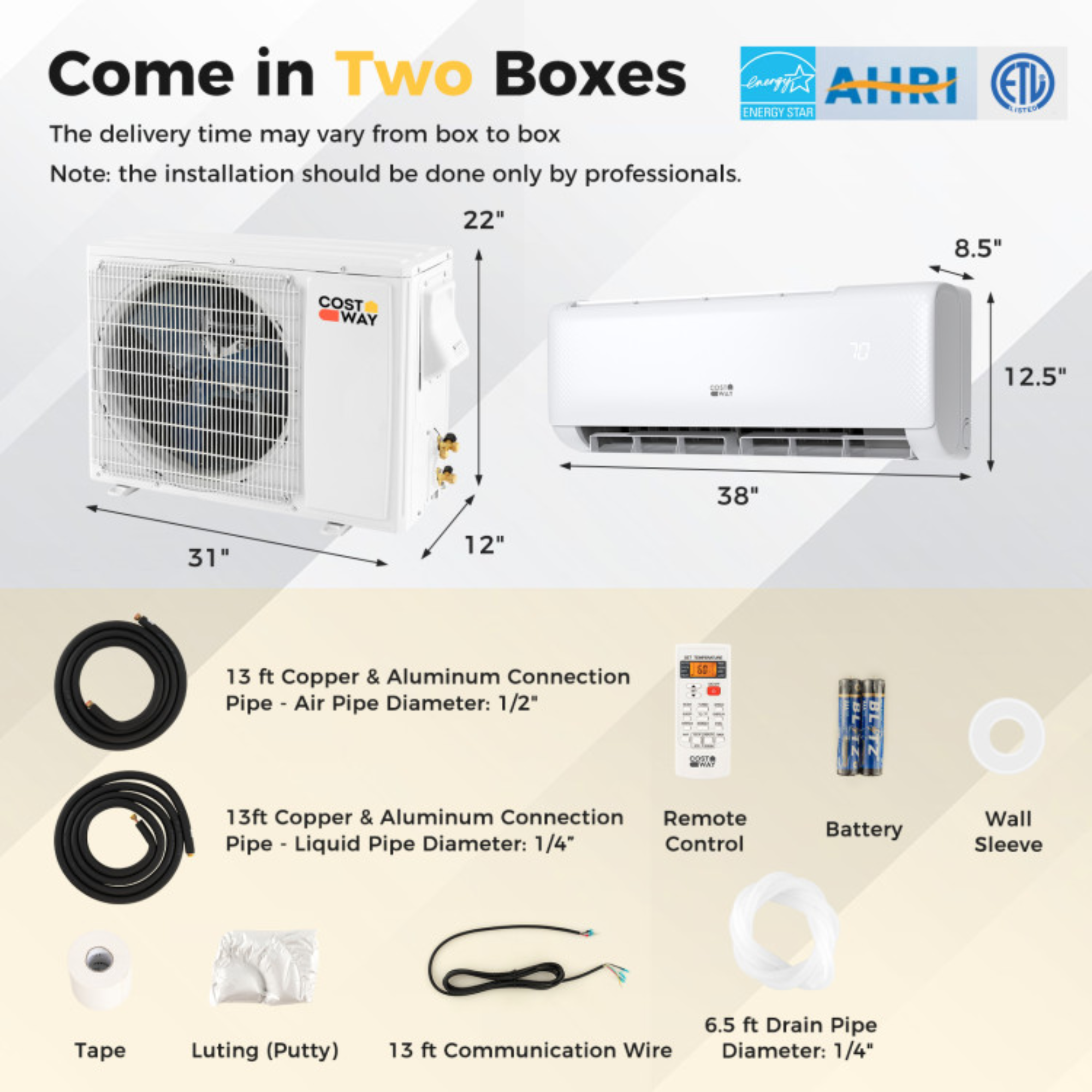

- Indoor Unit Size: 38″ x 8.5″ x 12.5″ (L x W x H)
- Outdoor Unit Size: 31″ x 12″ x 22″ (L x W x H)
- Total Net Weight: 87.5 lbs
- Box Qty: 2 (may vary by batch)
Installation & Compatibility
- Designed for applications needing heating and cooling coverage up to 1,250 sq. ft.; suitable for enclosed spaces where indoor and outdoor units can be mounted with appropriate clearance.
- Suitable as an upgrade on a new trailer build or as a replacement HVAC component where similar capacity and electrical requirements are needed.
- Electrical requirement: 208–230V~60Hz/1PH; verify available power supply and plan wiring/routing accordingly.
Related Uses
- Enclosed Trailer Parts & Accessories
- Trailer Upgrade Options
- Replacement Trailer Components
- Custom Trailer Build Add-Ons
- Heavy-Duty Trailer Parts for Sale
Additional Details
- This part can be purchased individually or added as an upgrade to a new trailer build.
- Features and compatibility may vary depending on trailer size and configuration.
- Options and availability may change based on selected specifications and market conditions.
